Stope Reconciliation

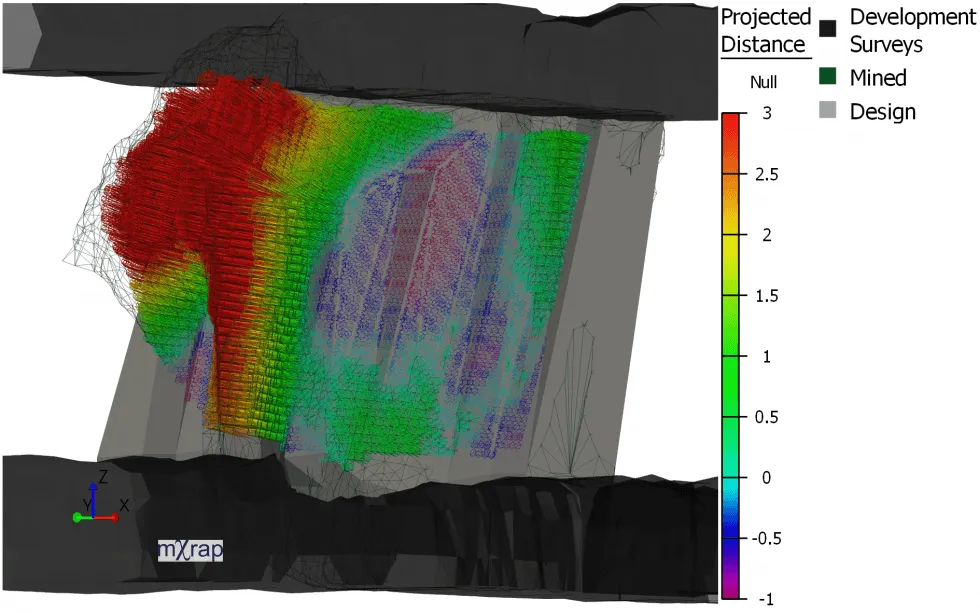

The Stope Reconciliation suite allows users to reconcile their mined surveys and design shapes quickly and easily. The reconciliation analysis is done on a fine resolution (less than 1 m) which allows for insights on a scale not previously considered in the industry. The app considers a range of factors which can contribute to stope performance, for example, quantification of various aspects of design geometry, blasthole data, and geotechnical data. The analysis application gives users the ability to visualise and discover trends in their data, identifying the critical factors leading to stope overbreak and underbreak at their mine.

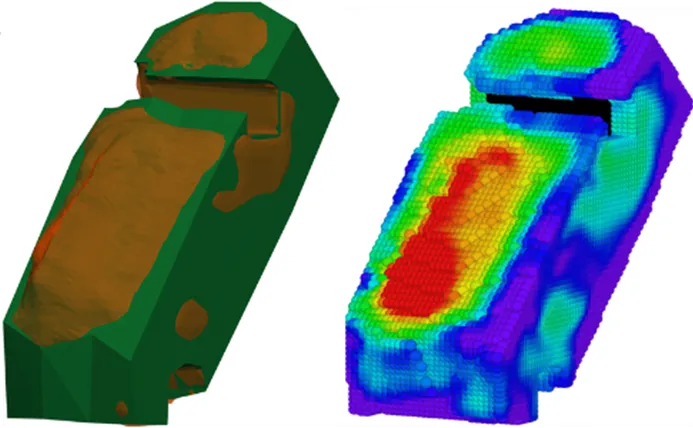

The prediction add-on module provides insight into the expected mined geometry for understanding and optimising the stope performance. Predictions are made at a fine resolution (less than 1 m) allowing to build a predicted mined geometry and reconcile with the design shape and economic block model in order to determine the overbreak, underbreak, and economic performance.

Documentation​

Authors​

Principal authors: Kyle Woodward, Benoît McFadyen, and Matthew Heinsen Egan

Development support: Initially developed under the Stope Reconciliation research project

Woodward, KR, McFadyen, B & Heinsen Egan, M 2021, Stope Reconciliation, version 1, computer software, Australian Centre for Geomechanics, Perth. mxrap.com

Publications​

McFadyen, B, Grenon, M, Woodward, K & Potvin, Y 2024, Optimising stope design through economic and geotechnic assessments of predictions made at a meter scale resolution using the sites' reconciled data, International Journal of Rock Mechanics and Mining Sciences, vol. 178 https://doi.org/10.1016/j.ijrmms.2024.105778

Woodward, K, McFadyen, B & Tremblay, K 2024, Integrating a new approach at the Westwood mine site for predicting the stope mined geometry, in P Andrieux & D Cumming-Potvin (eds.) Deep Mining 2024: Proceedings of the 10th International Conference on Deep and High Stress Mining, pp. 1335-1348 https://doi.org/10.36487/ACG_repo/2465_88

McFadyen, B 2024, Developing a new methodology for predicting open stopes' performance, PhD thesis,, Université Laval, Quebec City https://hdl.handle.net/20.500.11794/146964

McFadyen, B, Grenon, M, Woodward, K & Potvin, Y 2023, Assessing stope performance using georeferenced octrees and multivariate analysis, Mining Technology, vol. 132, no. 2, 132-2,152 http://dx.doi.org/10.1080/25726668.2023.2205080

McFadyen, B, Grenon, M, Woodward, K & Potvin, Y 2023, Predicting open stope performance at an octree resolution using multivariate models, Journal of the Southern African Institute of Mining and Metallurgy, vol. 123, no. 6, pp. 309-320 https://scielo.org.za/scielo.php?script=sci_arttext&pid=S2225-62532023000600005

McFadyen, B, Woodward, KR & Potvin, Y 2021, Open stope design; beyond the Stability Graph, Underground Operators Conference 2021, AusIMM, Melbourne https://www.ausimm.com/publications/conference-proceedings/underground-operators-conference-2021/open-stope-design-beyond-the-stability-graph/

Cumming-Potvin, D, Tierney, S, Potvin, Y, Thin, I & Grant, D 2021, A methodology for assessing stope design modifying factors for the Olympic Dam Mine, Proceedings of the Underground Operators Conference 2021, The Australasian Institute of Mining and Metallurgy, Melbourne, pp. 473-485

Linzer, LM, Hildyard, MW, Spottiswoode, SM & Wesseloo, J 2020, Do stopes contribute to the seismic source?, The Journal of The Southern African Institute of Mining and Metallurgy, vol. 120, no. 1, pp. 81-90

Potvin, Y, Woodward, KR, McFadyen, B, Thin, I & Grant, D 2020, Benchmarking of stope design and reconciliation practices, in J Wesseloo (ed.) Proceedings of the Second International Conference on Underground Mining Technology, Australian Centre for Geomechanics, Perth, pp. 299-308 https://doi.org/10.36487/ACG_repo/2035_14

McFadyen, B, Woodward, KR, Potvin, Y & Grenon, M 2020, A new stope reconciliation approach, in J Wesseloo (ed.) Proceedings of the Second International Conference on Underground Mining Technology, Australian Centre for Geomechanics, Perth, pp. 335-350 https://doi.org/10.36487/ACG_repo/2035_17

Woodward, K, McFadyen, B, Potvin, Y & Wesseloo, J 2019, Probabilistic Stope Design, MRIWA Project No. M489, Australian Centre for Geomechanics, Perth https://www.mriwa.wa.gov.au/research-projects/project-portfolio/probabilistic-stope-design/

McFadyen, B, Grenon, M, Morissette, P & Woodward, K 2019, Preliminary assessment of primary stope performance for a seismically active mine, 53rd U.S. Rock Mechanics/Geomechanics Symposium, American Rock Mechanics Association, Alexandria https://admin.onepetro.org/ARMAUSRMS/proceedings-abstract/ARMA19/All-ARMA19/ARMA-2019-1679/125004

Linzer, LM, Hildyard, MW, Spottiswoode, SM & Wesseloo, J 2019, Do stopes contribute to the seismic source?, in W Joughin (ed.) Proceedings of the Ninth International Conference on Deep and High Stress Mining, The Southern African Institute of Mining and Metallurgy, Johannesburg

Potvin, Y, Grant, D, Mungur, G, Wesseloo, J & Kim, Y 2016, Practical stope reconciliation in large-scale operations part 2, Olympic Dam, South Australia, Seventh International Conference & Exhibition on Mass Mining (MassMin 2016), The Australasian Institute of Mining and Metallurgy, Melbourne https://www.ausimm.com/publications/conference-proceedings/seventh-international-conference--exhibition-on-mass-mining-massmin-2016/practical-stope-reconciliation-in-large-scale-operations-part-2-olympic-dam-south-australia/

Potvin, Y, Grant, D & Mungur, G 2015, Towards a practical stope reconciliation process in large-scale bulk underground stoping operations, Olympic Dam, South Australia, CIM Journal, vol. 6, no. 2, pp. 102-110

Potvin, Y, Grant, D & Munger, G 2012, Towards a practical stope reconciliation process at Olympic Dam, , Canadian Institute of Mining, Metallurgy and Petroleum, Sudbury https://onemine.org/documents/towards-a-practical-stope-reconciliation-process-in-large-scale-bulk-underground-stoping-operations-olympic-dam-south-australia

Hudyma, MR, Frenette, P & Leslie, I 2010, Monitoring open stope caving at Goldex Mine, Caving 2010: Proceedings of the Second International Symposium on Block and Sublevel Caving, Australian Centre for Geomechanics, Perth, pp. 133-144 https://doi.org/10.36487/ACG_rep/1002_6_Hudyma
