Faults

• Stope Reconciliation

Import structural surveys for visualisation and calculating fault parameters.

Steps

1. Import Surveys (if required).

observação

This is only required if surveys haven't already been built in the survey tool.

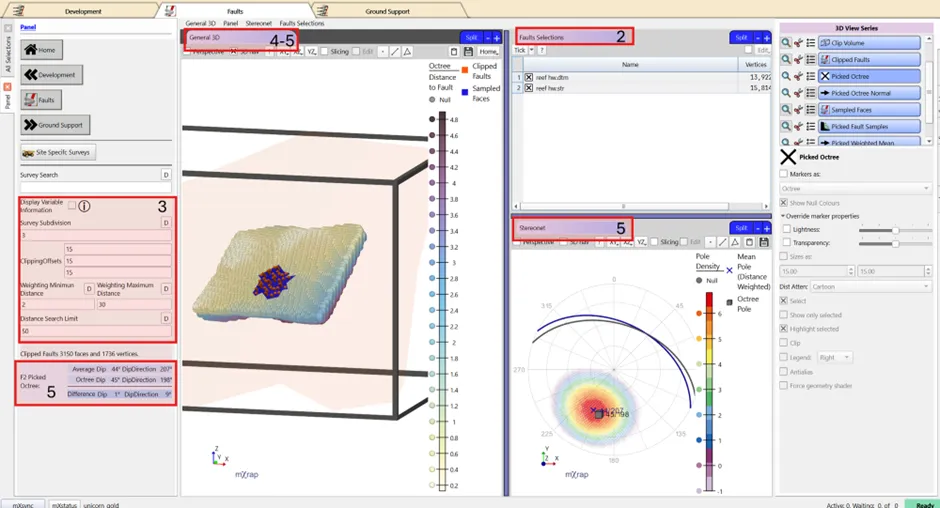

2. Tick the faults critical to stope performance from the table view.

3. Adjust survey subdivision clipping box and weightings and search distance (if required).

observação

This is rarely required but may be adjusted for specific case e.g. to increase subdivision and decrease clipping if there a lot of faults or increase search limits for very large stopes and sparse faults.

4. Check in 3D Viewer - Validate mapping computations.

⏭️ Next Step: Click "Ground Support".
